Installs with concealed mechanical fasteners through pre-punched holes
Vertical wall applications only
Widths - 12”, 16”
Material: 24 gauge steel and .032 aluminum
Batten is 2” wide and ¾” deep on all panel widths
Recommended Maximum Panel Length: 8 feet. Acknowledgment form required. See below for more information.
Actual Maximum Panel Length: 30 feet (steel), 22 feet (aluminum)
Where Timeless Design Meets Modern Elegance

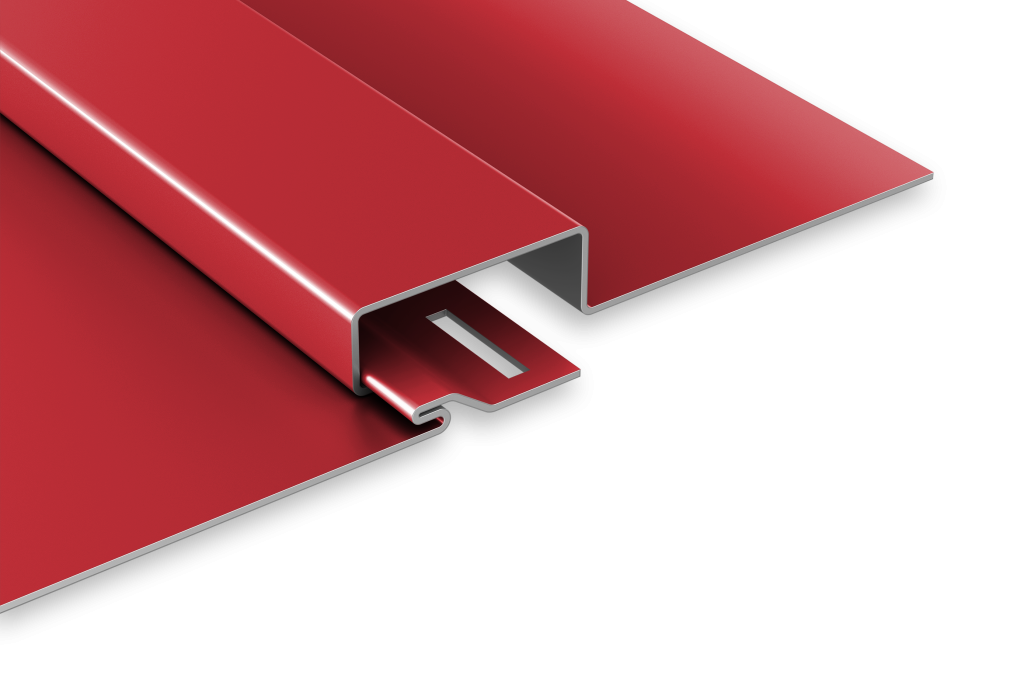

The Board and Batten panel system provides a timeless design aesthetic for commercial and residential wall applications. It uses a concealed fastener system to maintain clean lines and a rhythmic pattern of alternating wide vertical boards and narrower elevated battens. The ¾” batten depth and 2” width create dimensional interest while keeping trim offsets to a minimum. Board and Batten panels blend smoothly into various architectural styles. Whether creating a cozy and inviting facade or a bold and striking statement, Board and Batten exterior wall panels remain a versatile tool for architectural creativity.
Recommended Maximum Panel Lengths To help limit the visual appearance of oil canning, Petersen recommends these maximum panel lengths for Board & Batten panels:
Recommended for 24-gauge steel & .032” aluminum: maximum length of 8’-0” nominal
Actual maximum length: 30 feet (steel), 22 feet (aluminum)
Note: Oil canning is a natural characteristic of metal panels and is not considered a defect or cause for rejection. An oil canning acknowledgment form is required when Board & Batten panels are ordered beyond the recommended lengths.
